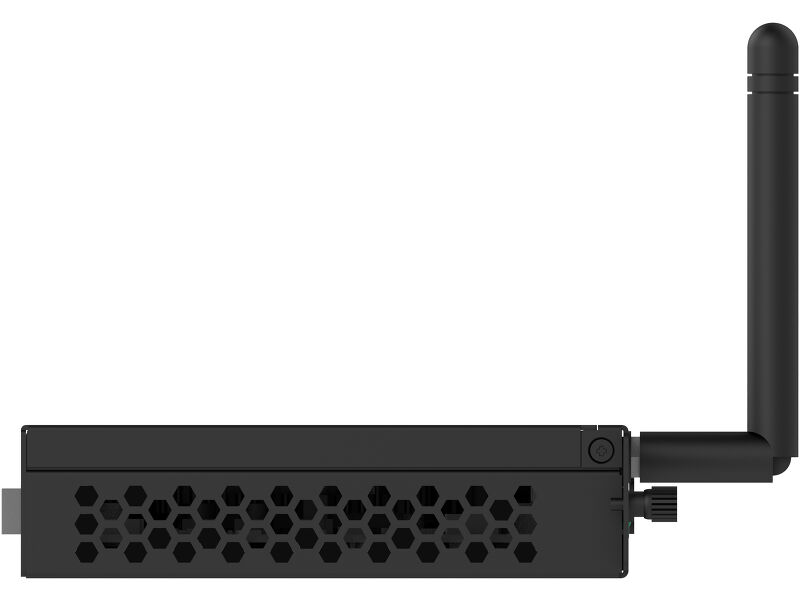

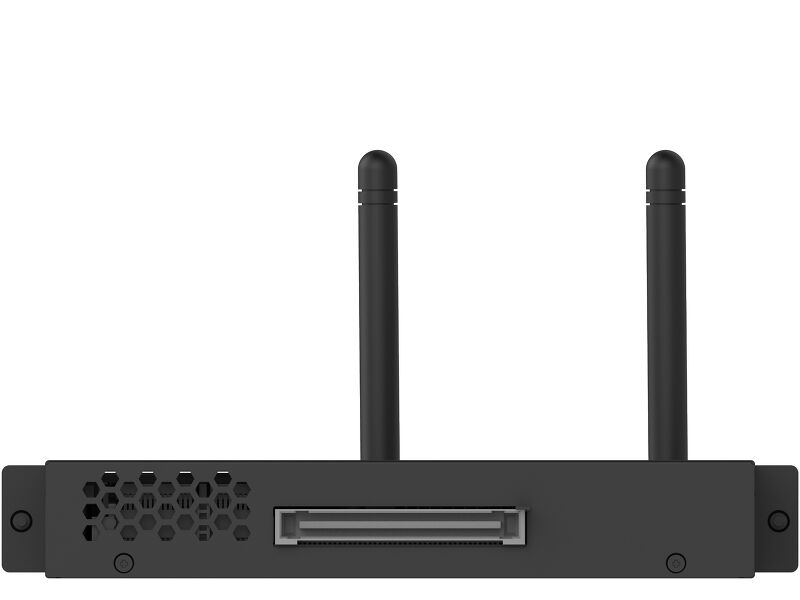

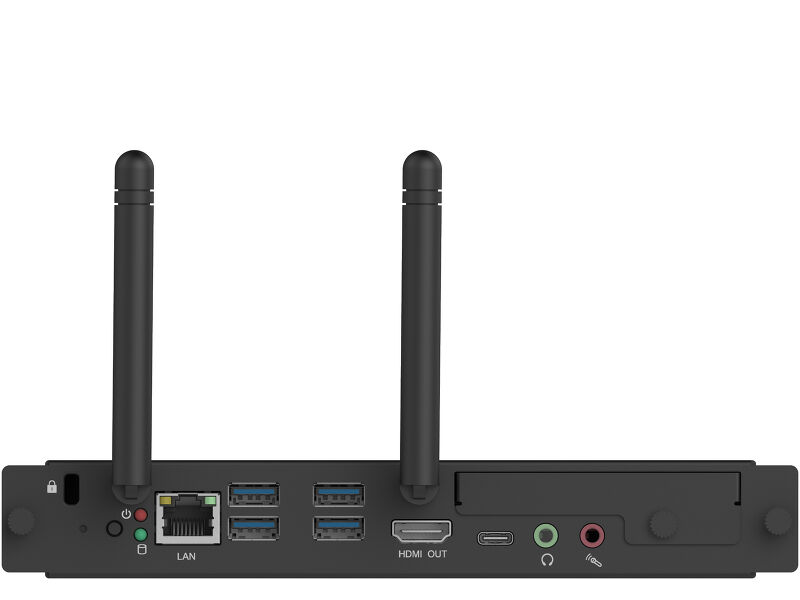

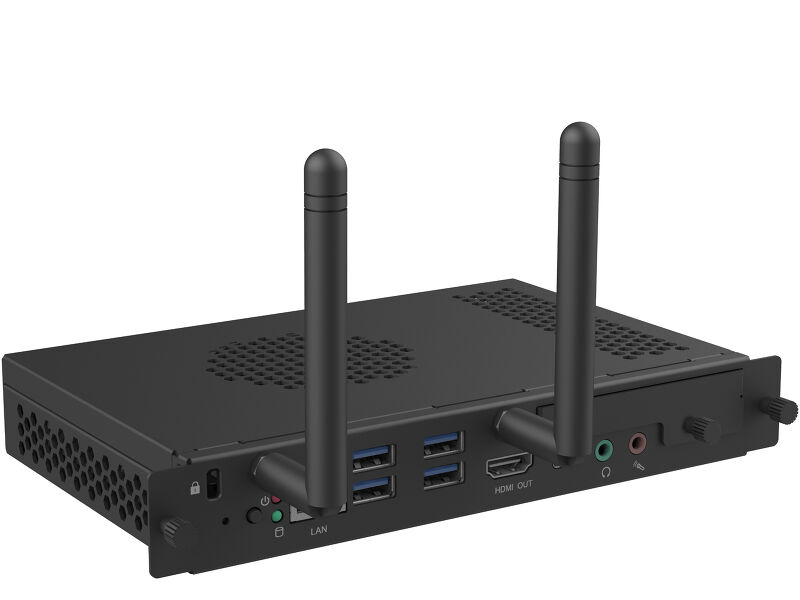

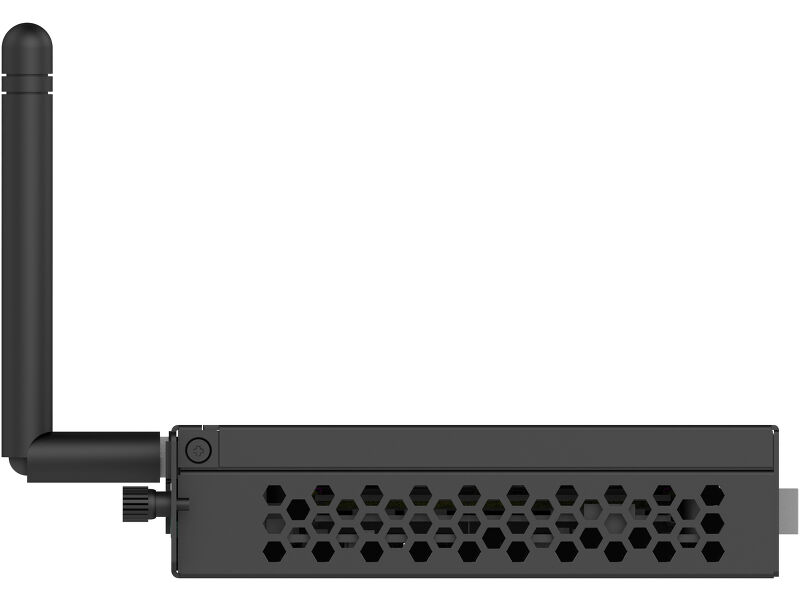

An Intel® i5 OPS slot PC with Windows® 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)
This mini OPS PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.
The module is standard Intel OPS compatible, including the following iiyama displays: 55": TE5504MIS-B3AG, 65'': TE6502MIS-B1AG / TE6504MIS-B3AG, 75": TE7502MIS-B1AG / TE7504MIS-B3AG, 86'': TE8602MIS-B1AG / TE8604MIS-B3AG and the 98": TE9804MIS-B1AG
| Type | OPS slot PC |
| CPU | Intel® Core™ i5-1135G7, TPM 2.0 (Trusted Platform Module) |
| RAM | 8GB DDR4 |
| SSD | 256GB M.2 |
| Graphics | Integrated Intel® Iris® Xe |
| Sound card | Integrated High Definition Audio Stereo |
| Network | 10/100/1000M Adapter |
| WiFi | 802.11a/b/g/n/ac (M.2 2230) |
| Bluetooth | 4.2 |
| Operating system | Win 10 IoT Enterprise 64-bit, Windows 11 compatible |
| LAN (RJ45) | x1 |
| USB | 3.0 x4, 3.2 (Type C) x1 |
| HDMI Out | x1 |
| Headphone connector | yes |
| Microphone In | x1 |
| Power usage | 65W typical, 1.5W stand by |
| Product dimensions W x H x D | 133.5 x 30 x 202mm |
| Box dimensions W x H x D | 192 x 72 x 267mm |
| Weight (without box) | .75kg |
| Weight (with box) | .97kg |
| EAN code | 4948570032822 |
| Operation temperature range | 0°C - 45°C |
| Operation humidity | 10% - 90% |
| Storage temperature range | - 20°C - 60°C |
| Storage humidity | 10% - 90% |
