17” 5-wire resistive touchscreen
ProLite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.
Available also in black: ProLite T1731SR-B5
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
This LED monitor is equipped with two stereo speakers.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
|Native resolution||1280 x 1024 (1.3 megapixel)|
|Panel brightness||250 cd/m²|
|Brightness||200 cd/m² with touch|
|Static contrast||1000:1 with touch|
|Response time (GTG)||5ms|
|Viewing zone||horizontal/vertical: horizontal°/vertical 170°, right/left: 0°/0°, up/down: 0°/0°|
|Horizontal Sync||31 - 80kHz|
|Viewable area W x H||338 x 270mm, 13.3 x 10.6"|
|Bezel colour and finish||white, matte|
|Touch technology||serial resistive|
|Touch method||stylus, finger, glove|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||
|Audio output||Speakers 2 x 1W|
|Water and dust protection||IPIP54 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power|
|User controls||contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute|
|Tilt angle||90° up; 5° down|

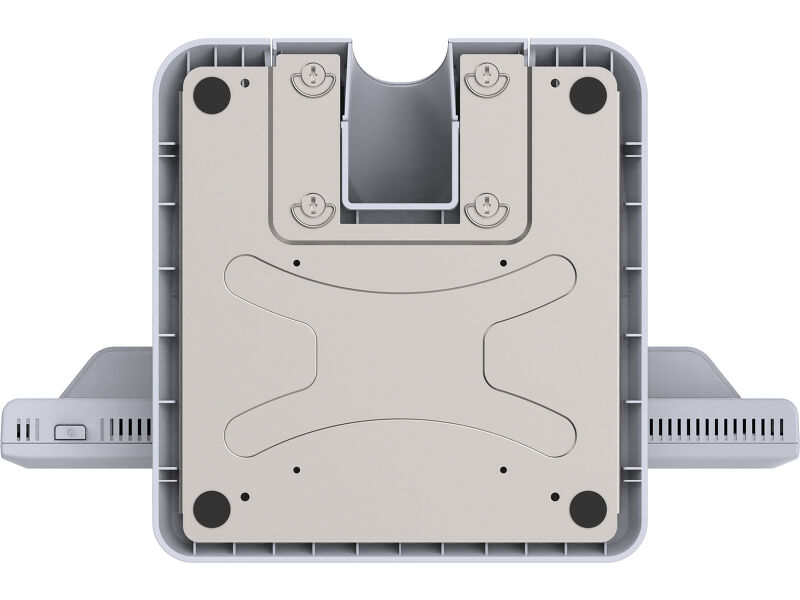

|VESA mounting||100 x 100mm|
|Cable management system||yes|

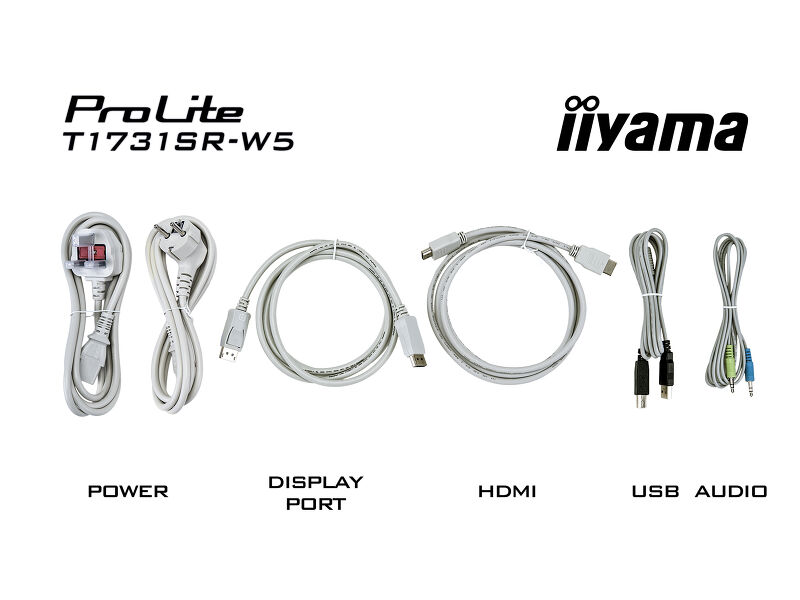

|Cables||power, USB, HDMI, Audio, DP|
|Guides||quick start guide, safety guide|
|Other||Touch Panel Driver Disk (CD-ROM)|
|Power supply unit||internal|
|Power supply||AC AC - 100V, 240/V, 50Hz|
|Power usage||20W typical, 2W stand by, 2W off mode|
|Regulations||CB, CE, GOST, RoHS support, ErP, WEEE, VCCI, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||E|
|REACH SVHC||above 0.1%: Lead, Lead monoxide, Boric acid|
|Product dimensions W x H x D||387 x 342 x 201mm|
|Weight (without box)||5.8kg|
|Technical specification||ProLite T1731SR-W5 - gb_en.pdf||Download|
|UK Energy Label||T1731SR-W5 UK Energy Label pdf data(376492).pdf||Download|
|Driver instruction EETI_09_2018||Driver instruction EETI_09_2018.pdf||Download|
