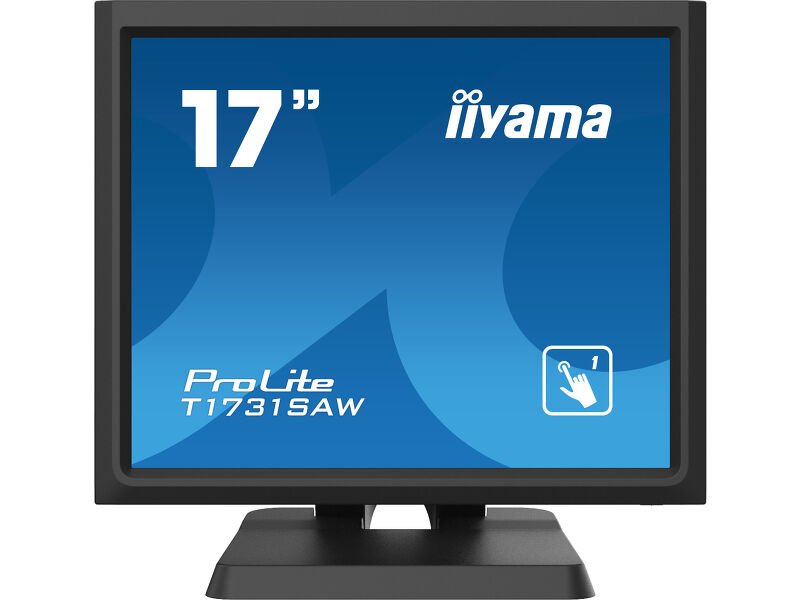

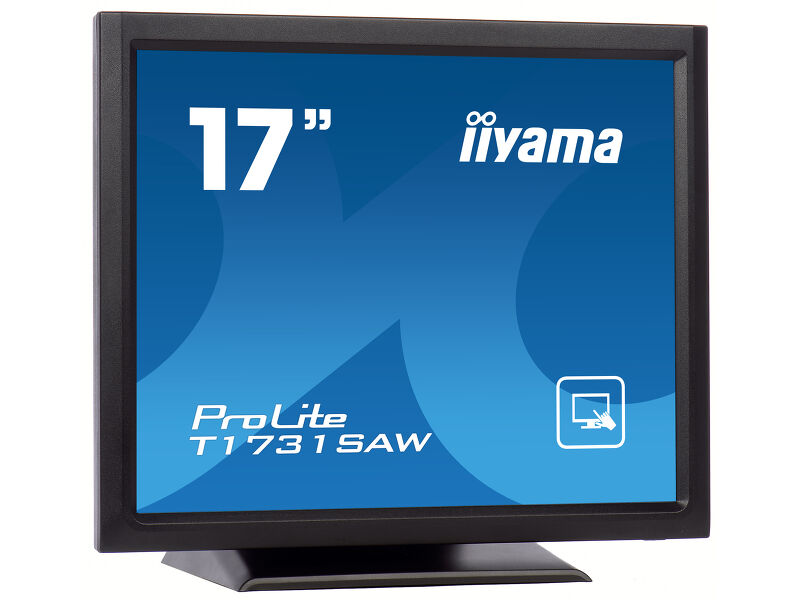

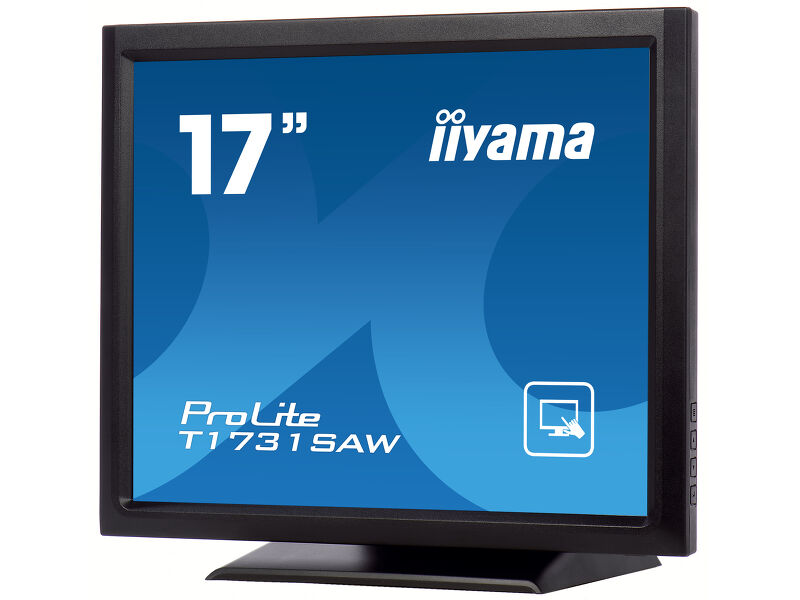

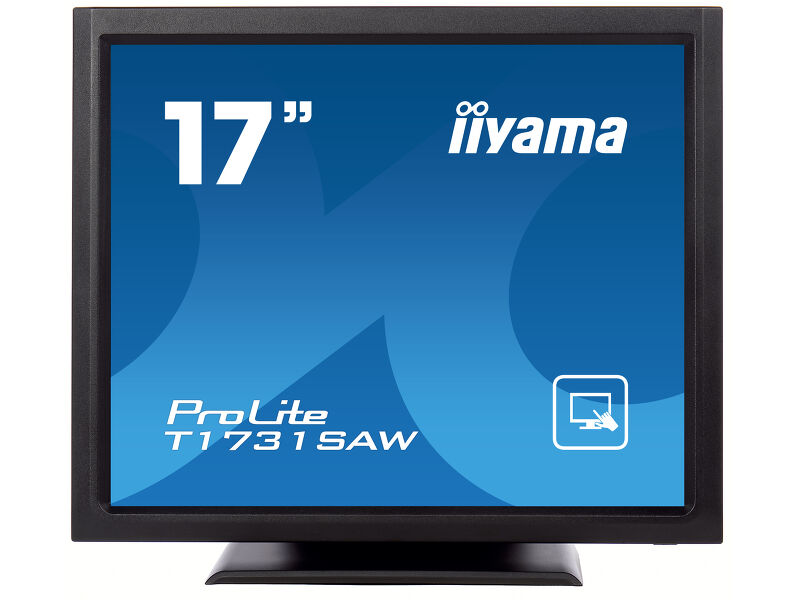

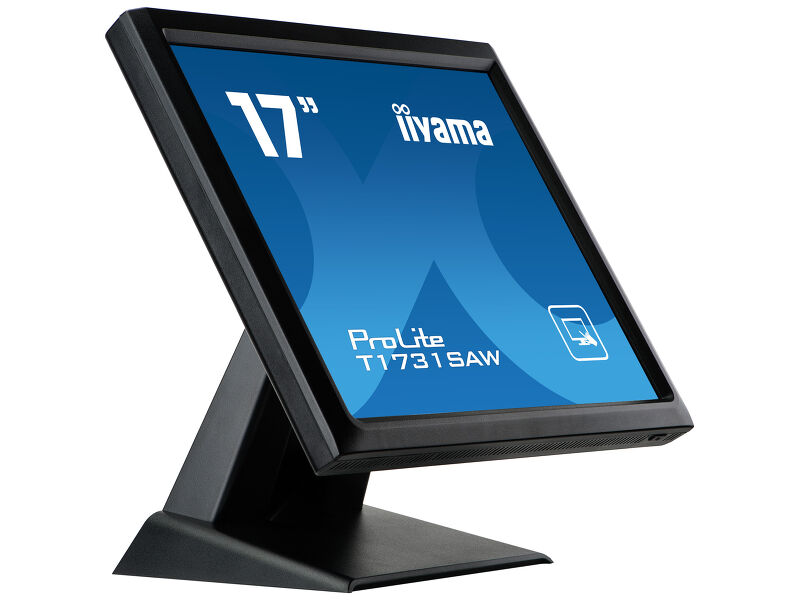

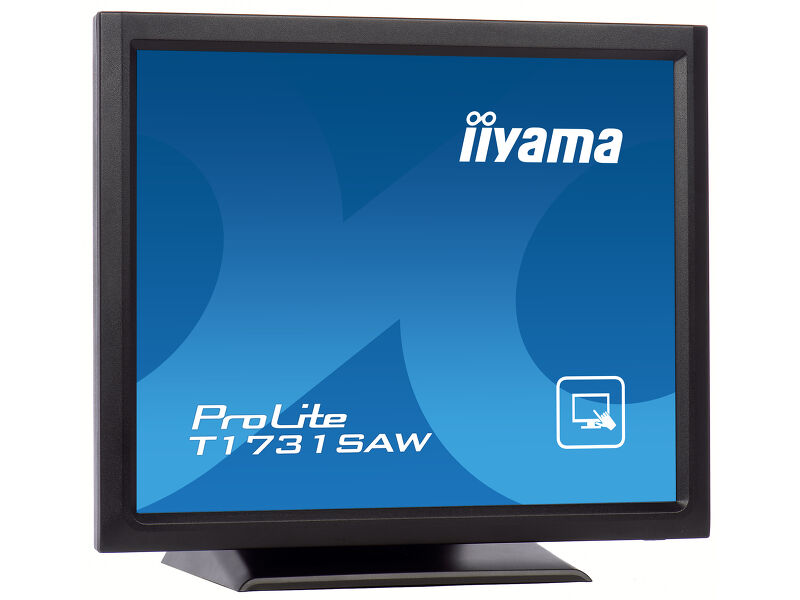

The ProLite T1731SAW uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, and the robust design and solid but flexible stand ensures resilience in the most demanding environment. Menu Buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the Touch Screen for cleaning. The iiyama Prolite T1731SAW Touch Screen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality and Entertainment, Control rooms, Education, Training and many others.
Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed and a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast and colour accuracy). It is also scratch-resistant technology and therefore ideal for use in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
This LED monitor is equipped with two stereo speakers.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
|Native resolution||1280 x 1024 (1.3 megapixel)|
|Brightness||250 cd/m² typical|
|Brightness||230 cd/m² with touch|
|Static contrast||1000:1 with touch|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||31.5 - 80KHz|
|Vertical Sync||56 - 75Hz|
|Viewable area W x H||338 x 270mm, 13.3 x 10.6"|
|Bezel colour and finish||black, matte|
|Touch interface||USB, RS-232c|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

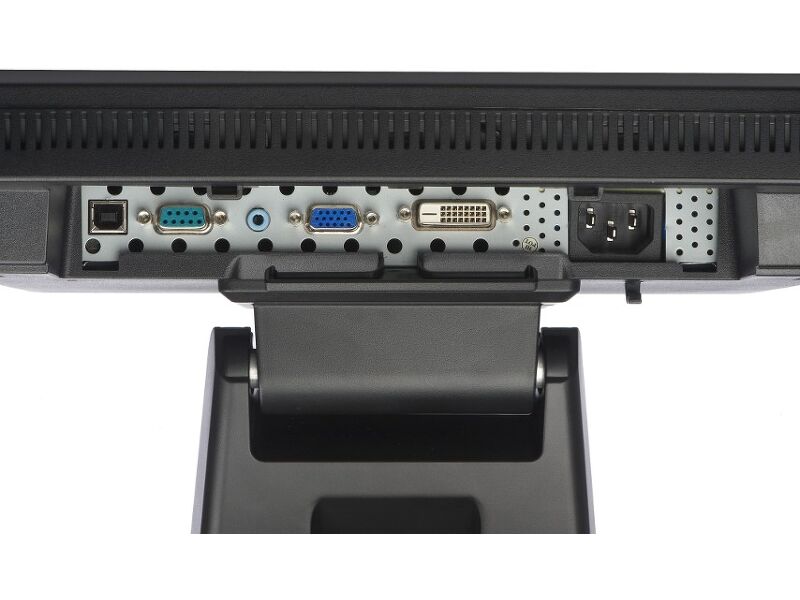

|Analog signal input||VGA x1|
|Digital signal input||DVI x1|
|Audio output||Speakers 2 x 1W|
|Water and dust protection||IP54 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Mute, Select/ Auto, Power|
|User controls||contrast, brightness, auto adjust, H.position, V.position, H.size, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute|

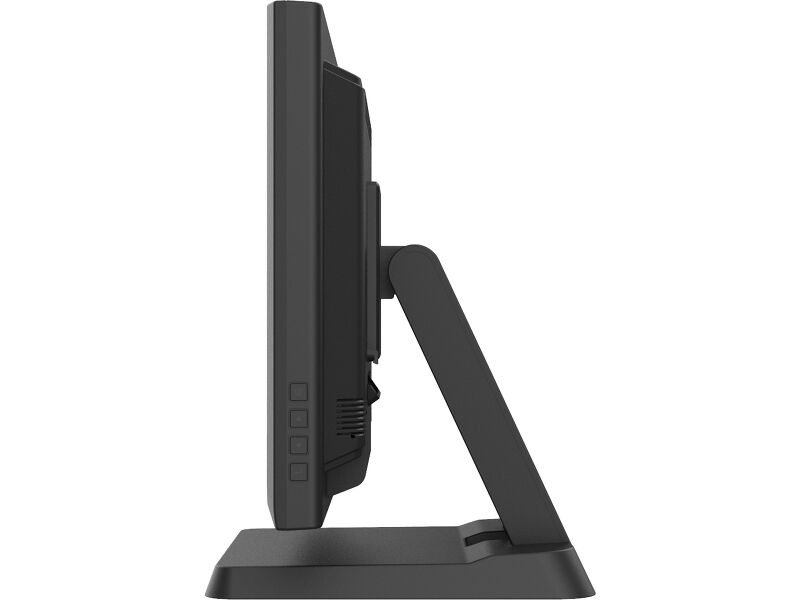

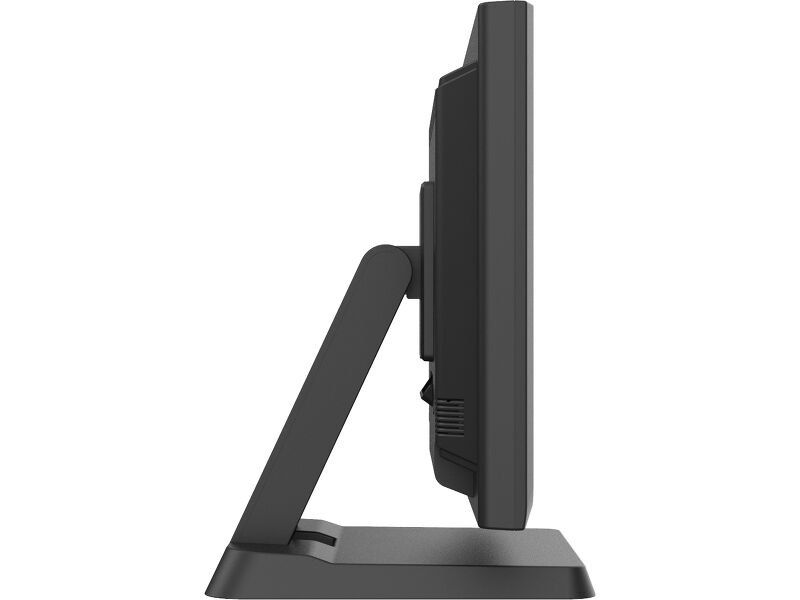

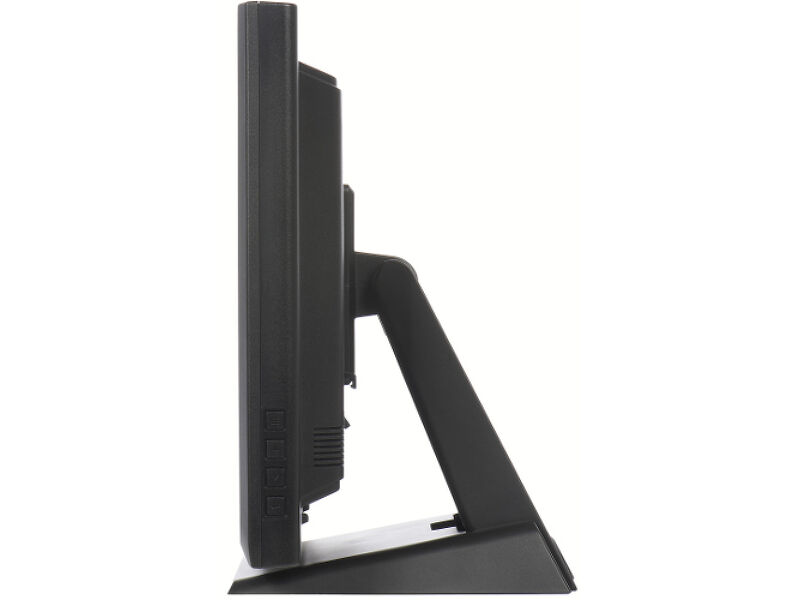

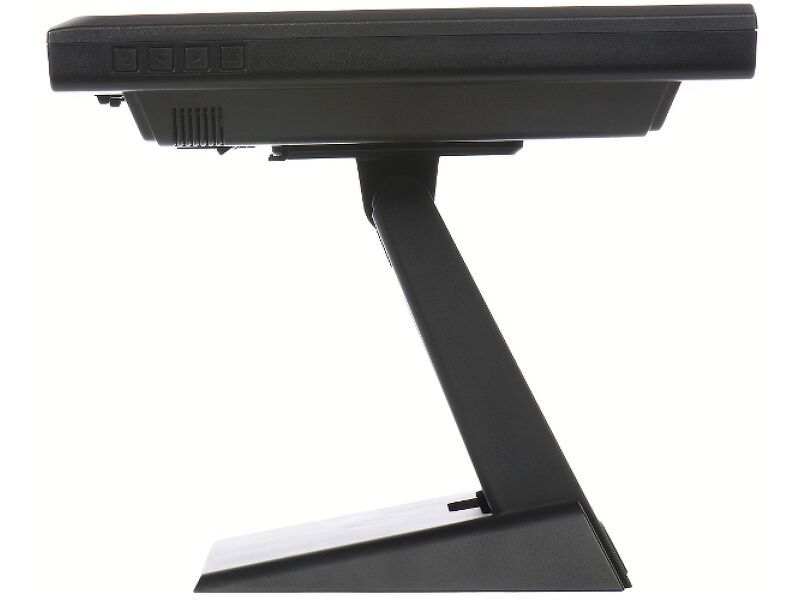

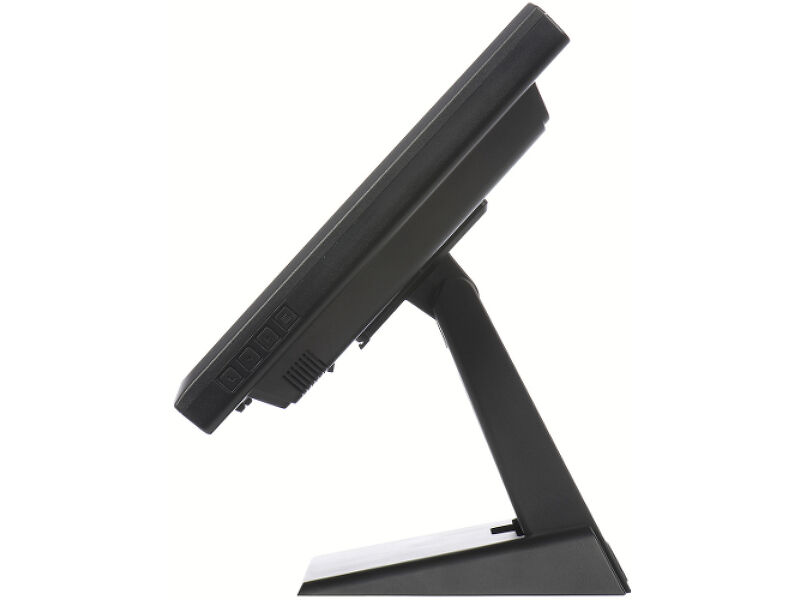

|Tilt angle||90° up; 5° down|

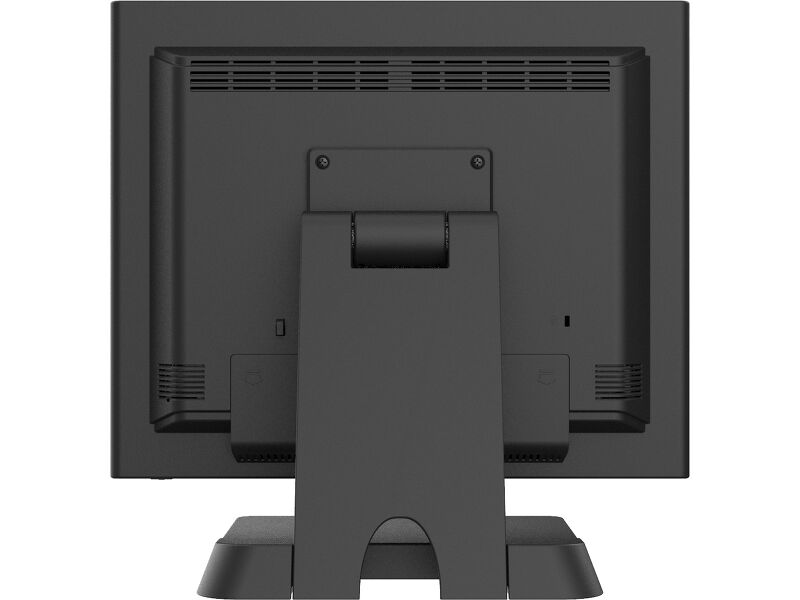

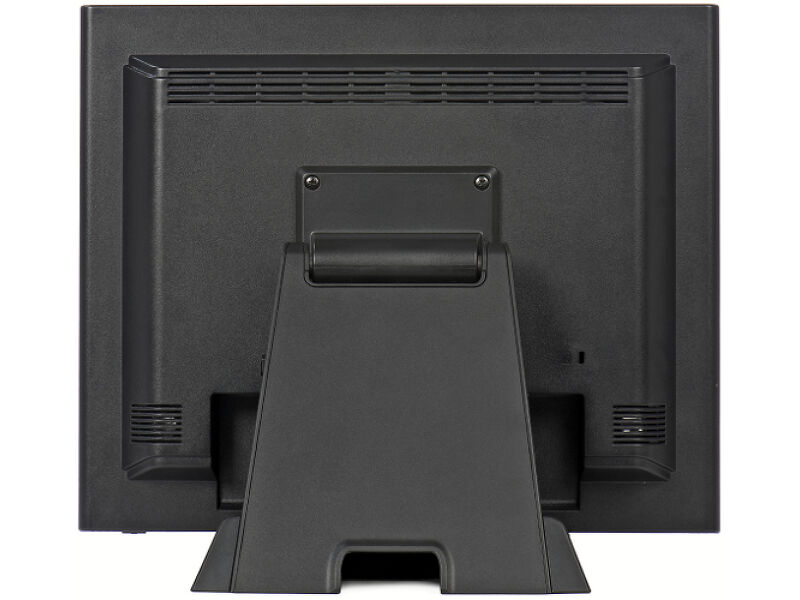

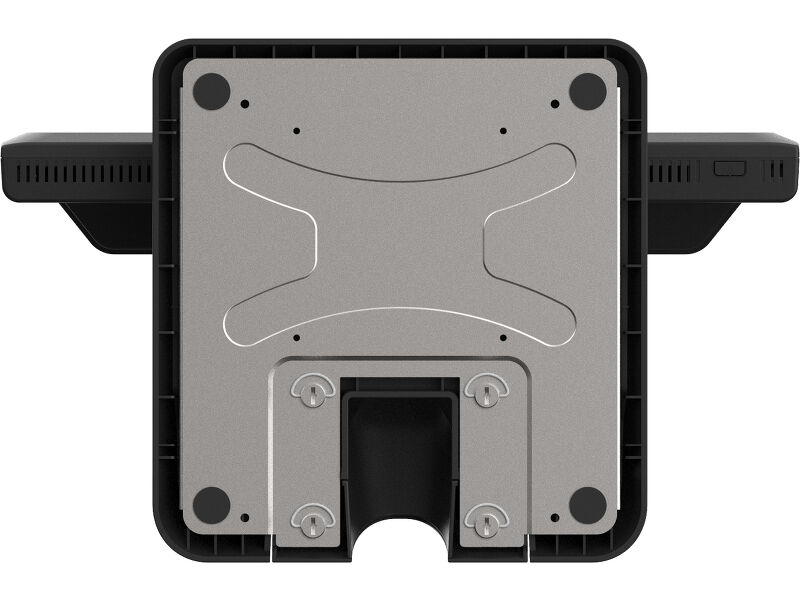

|VESA mounting||100 x 100mm|
|Cable management system||yes|
|Cables||power, VGA, DVI, USB, Audio|
|Guides||quick start guide, safety guide|
|Other||Touch Panel Driver Disk (CD-ROM)|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||15W typical, 1.14W stand by, 0.5W off mode|
|Regulations||CB, CE, TÜV-Bauart, EAC, CU, cULus, VCCI|
|Energy efficiency class||A|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||387 x 342 x 201mm|
|Weight (without box)||5.8kg|
|Energy efficiency class||A|
|Visible screen diagonal||43cm; 17"; (17" segment)|
|ON mode power consumption||15W|
|Annual energy consumption||22kWh/annum*|
|Power in Standby||1.14W stand by|
|Power in OFF Mode||3W off mode|
|Resolution||1280 x 1024|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
